Traffic Light Simulator

AUTOMATION

LABVIEW

What?

Design and implement a LabVIEW program to simulate a traffic light system, managing traffic flow at a two-way intersection with an option to prioritize rush-hour traffic.

How?

My lab partner, Bryce Plummer, and I:

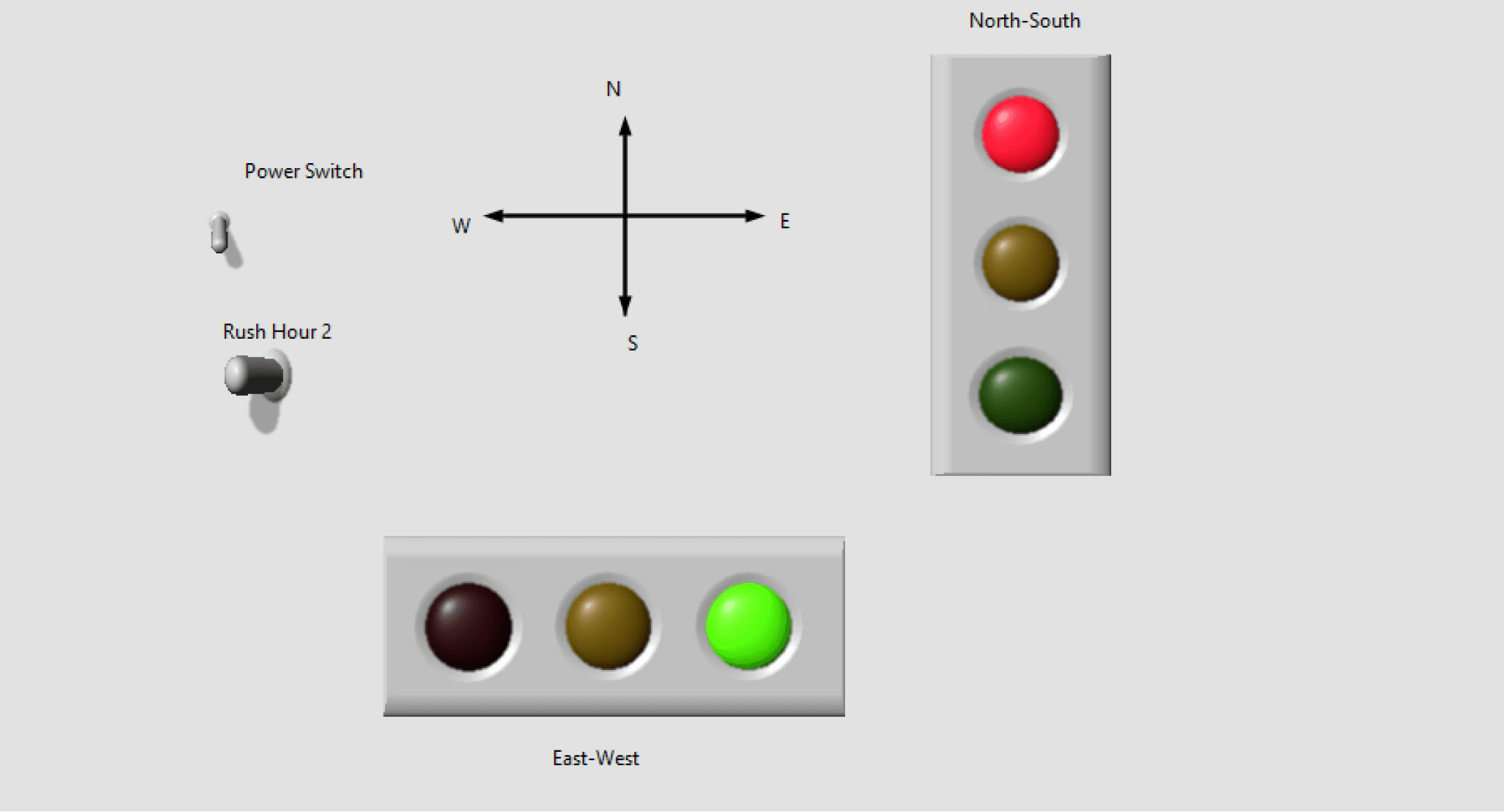

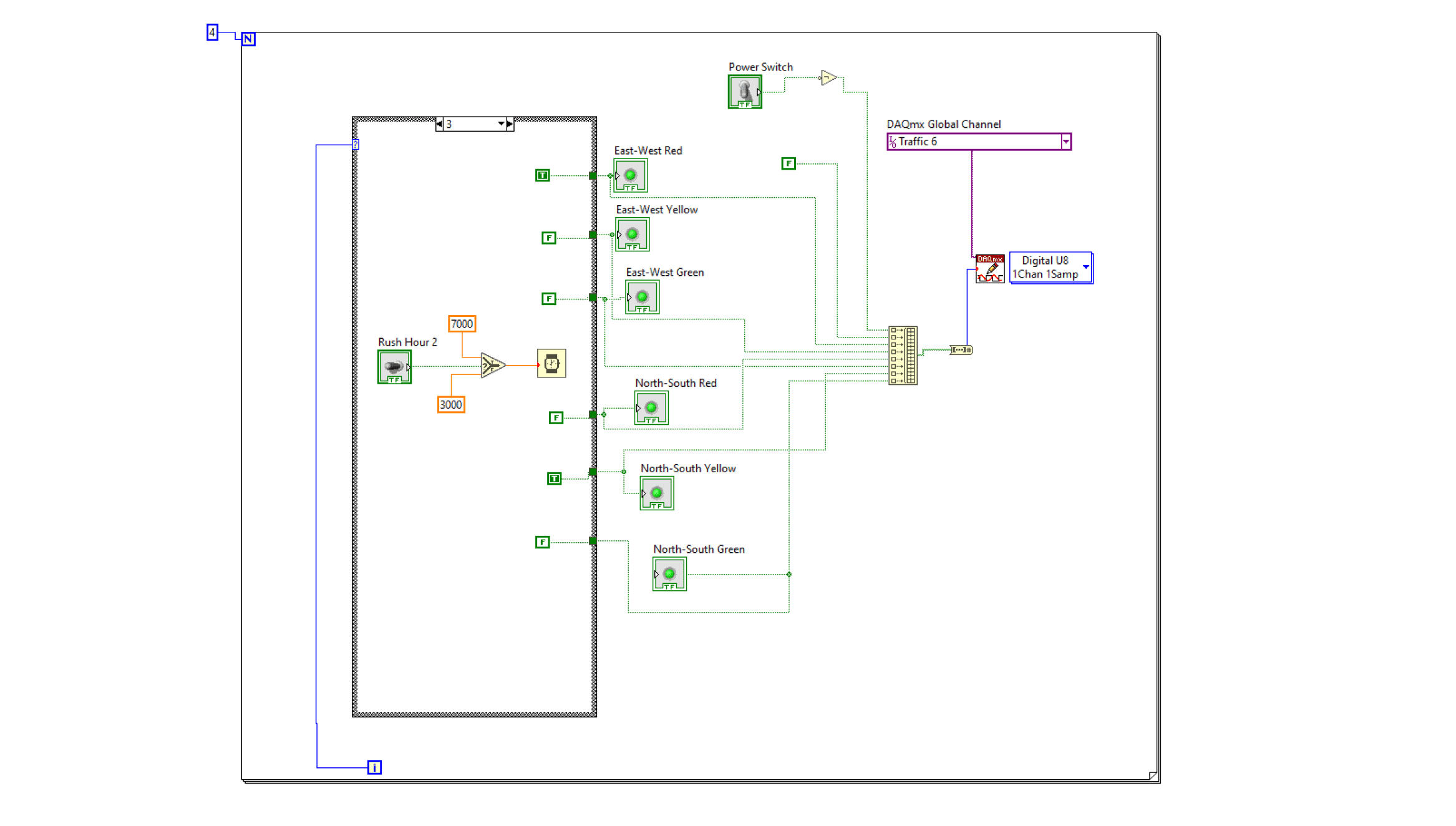

Developed a LabVIEW program with digital outputs to simulate red, yellow, and green signals for both north-south and east-west directions.

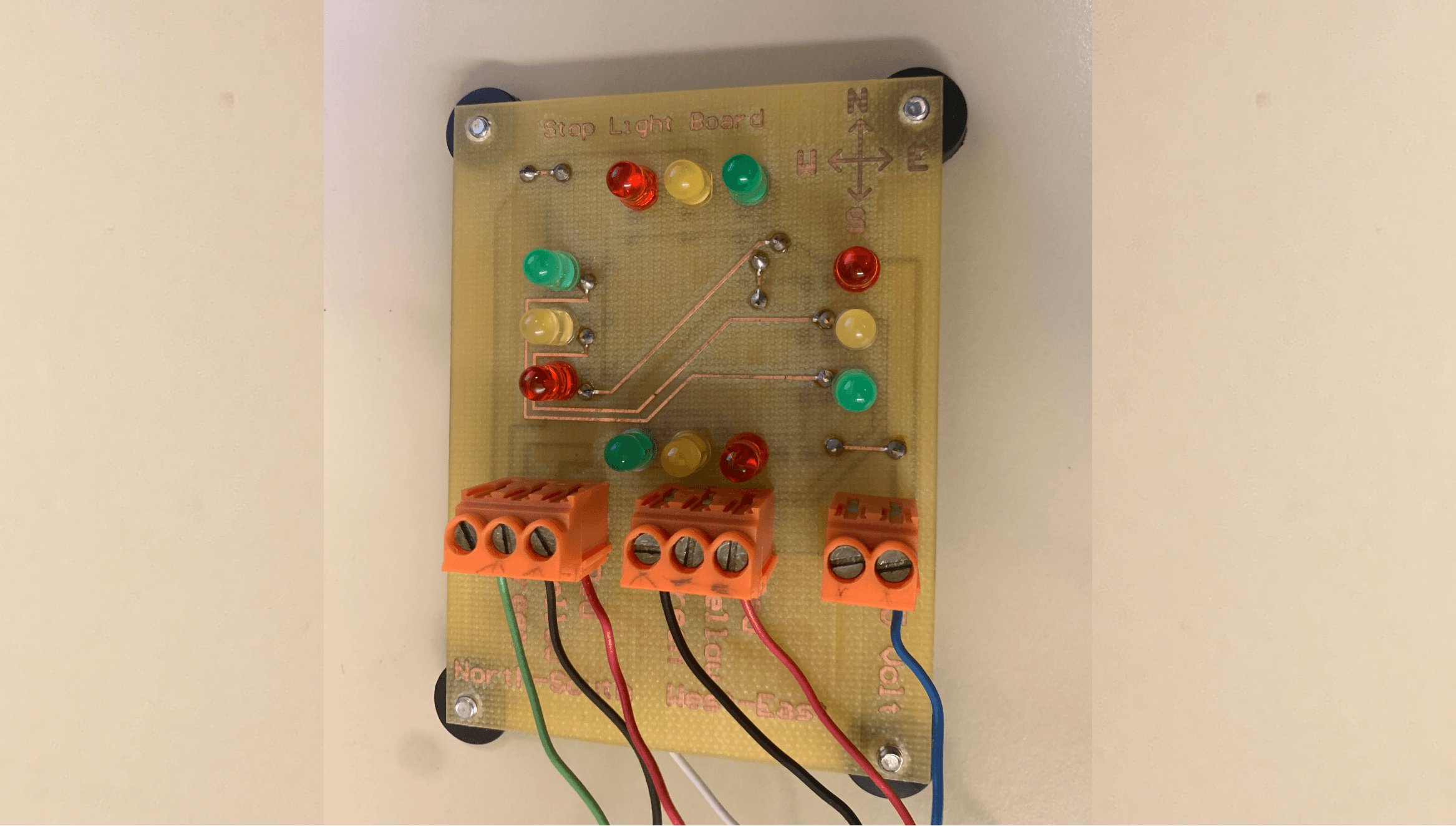

Connected a PCB board to the NI-DAQ module for digital output signals to control the LEDs based on program logic.
Incorporated a power switch to control system operation and a rush-hour mode for dynamic timing adjustments.
Configured timing logic to prioritize the busy direction during rush-hour while maintaining safety intervals.

My lab partner, Bryce Plummer, and I:

Developed a LabVIEW program with digital outputs to simulate red, yellow, and green signals for both north-south and east-west directions.
Connected a PCB board to the NI-DAQ module for digital output signals to control the LEDs based on program logic.
Incorporated a power switch to control system operation and a rush-hour mode for dynamic timing adjustments.
Configured timing logic to prioritize the busy direction during rush-hour while maintaining safety intervals.

Results

Successfully simulated traffic light operations with adjustable timing for rush-hour conditions.
Clear visual representation of light states ensured ease of understanding and usability.
Demonstrated functional control logic to prioritize high-traffic flow while maintaining safe operation.

Successfully simulated traffic light operations with adjustable timing for rush-hour conditions.
Clear visual representation of light states ensured ease of understanding and usability.
Demonstrated functional control logic to prioritize high-traffic flow while maintaining safe operation.
