Aerodynamic Analysis of a Sedan Body
Aerodynamic Analysis of a Sedan Body
Aerodynamic Analysis of a Sedan Body
ANSYS FLUENT
ANSYS FLUENT
SOLIDWORKS
SOLIDWORKS
CFD
CFD
What?
What?
Analyze the aerodynamic effects of adding a spoiler to a sedan body using computational fluid dynamics (CFD) simulations. The study focuses on lift and drag coefficients to assess the impact of the spoiler on airflow and vehicle stability.
Analyze the aerodynamic effects of adding a spoiler to a sedan body using computational fluid dynamics (CFD) simulations. The study focuses on lift and drag coefficients to assess the impact of the spoiler on airflow and vehicle stability.
How?
How?

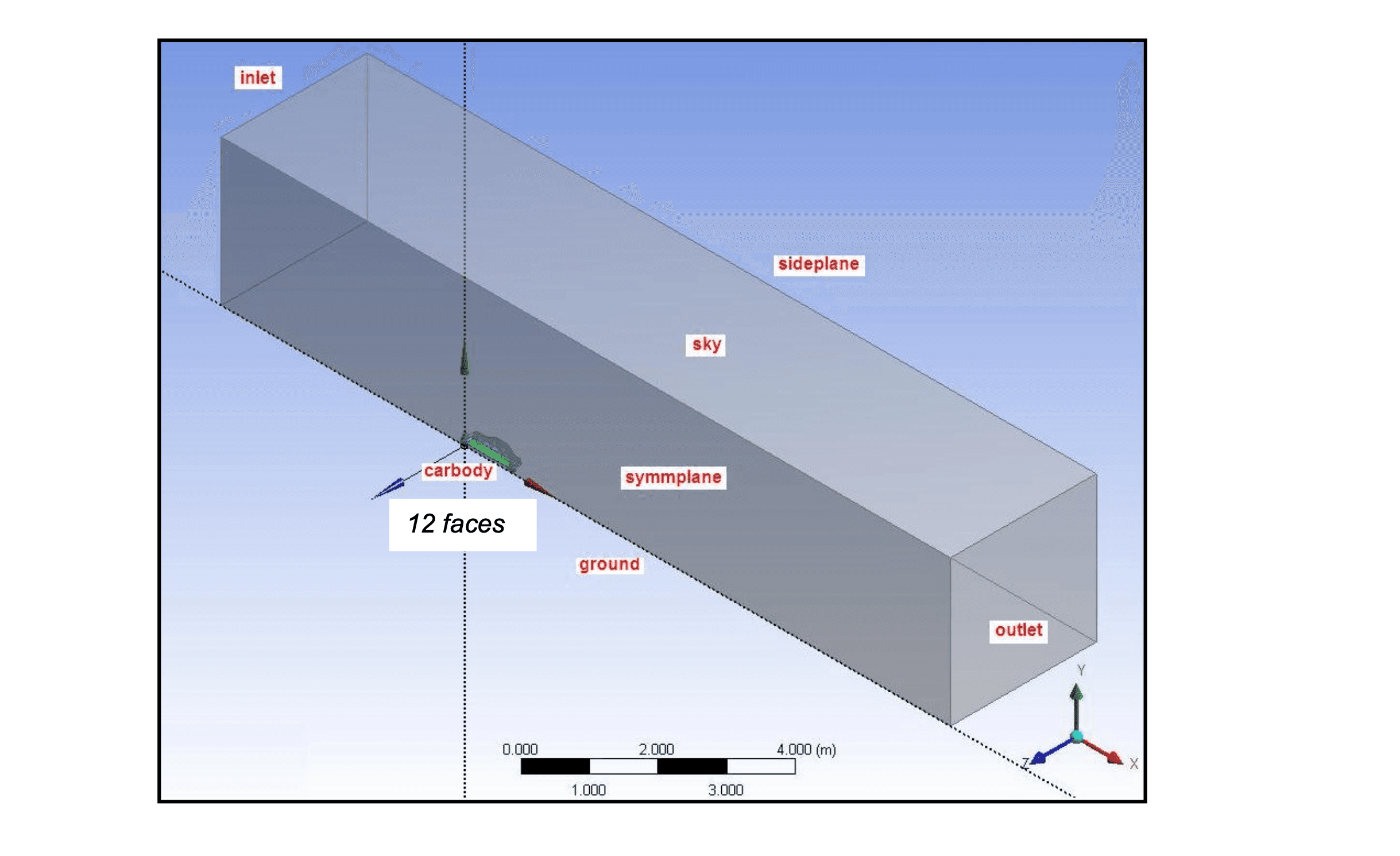

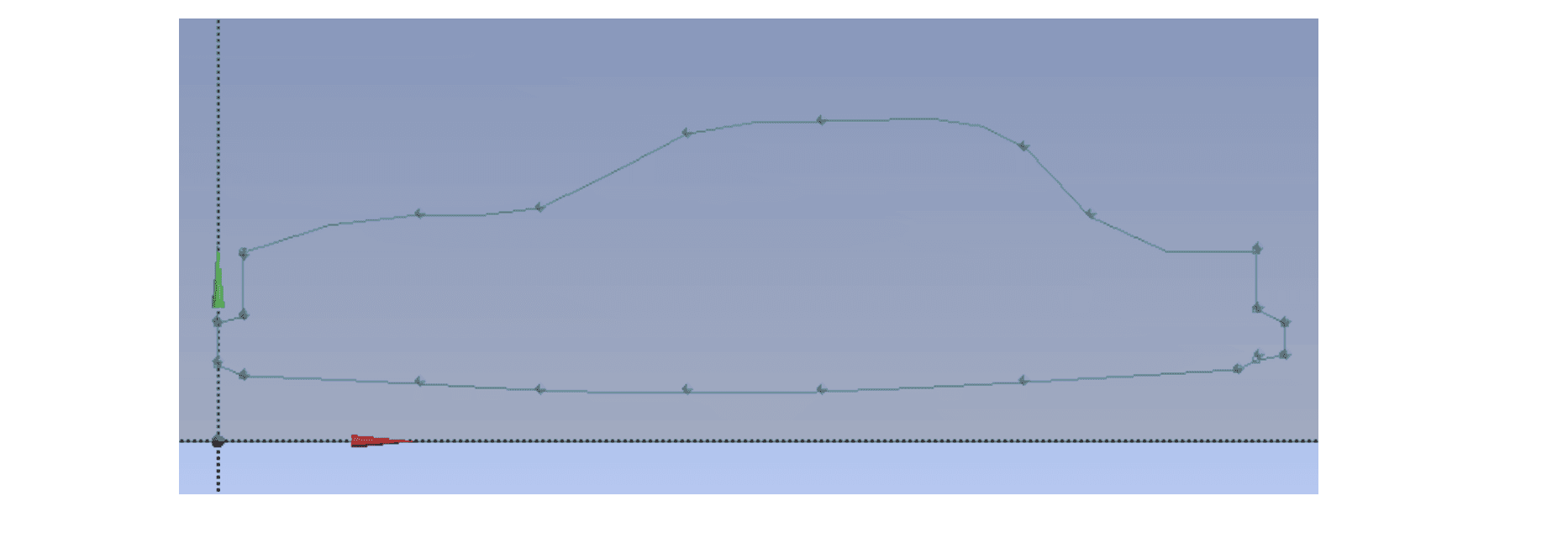

Created 3D models of the sedan with and without a spoiler using ANSYS DesignModeler.

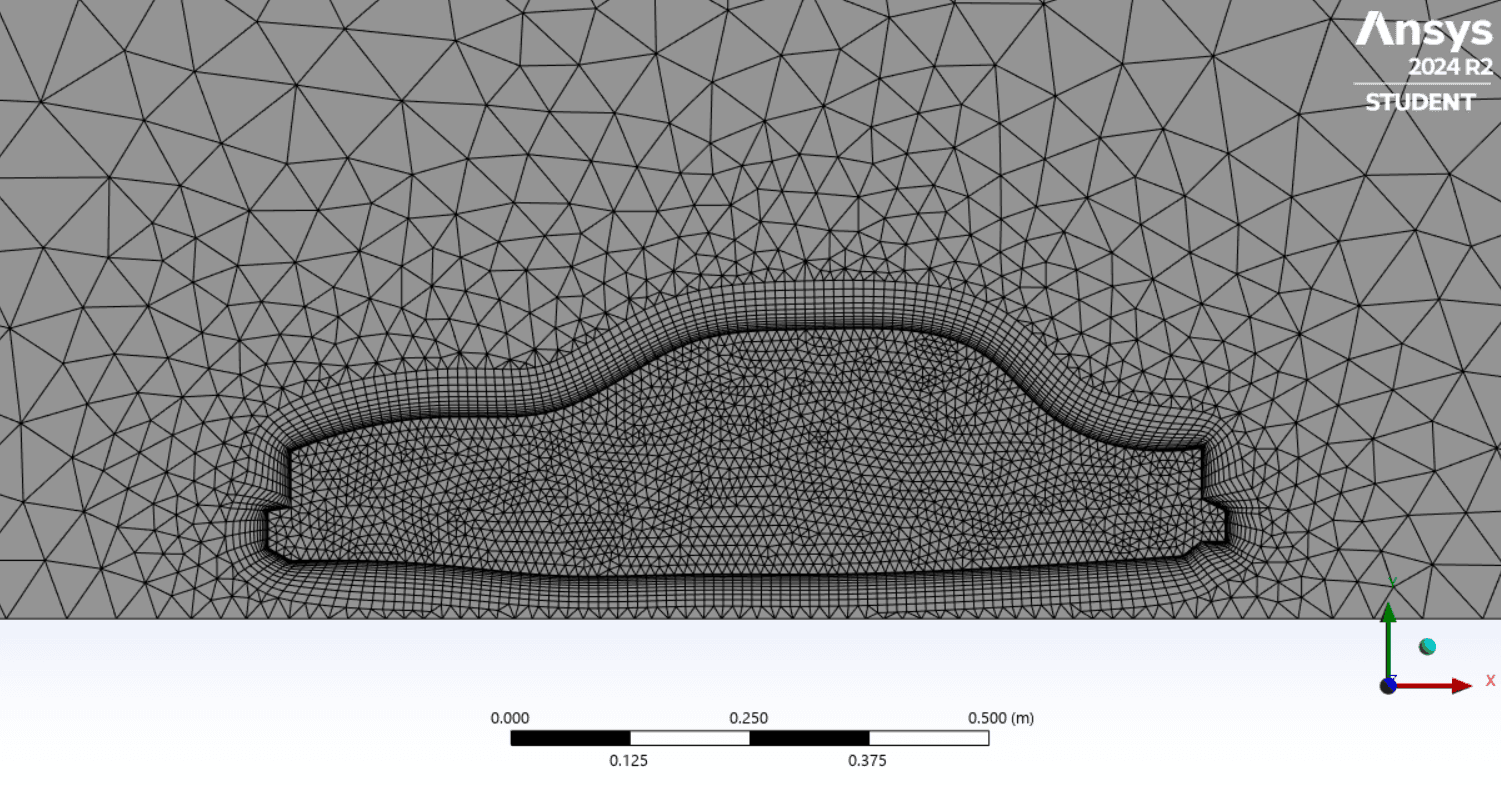

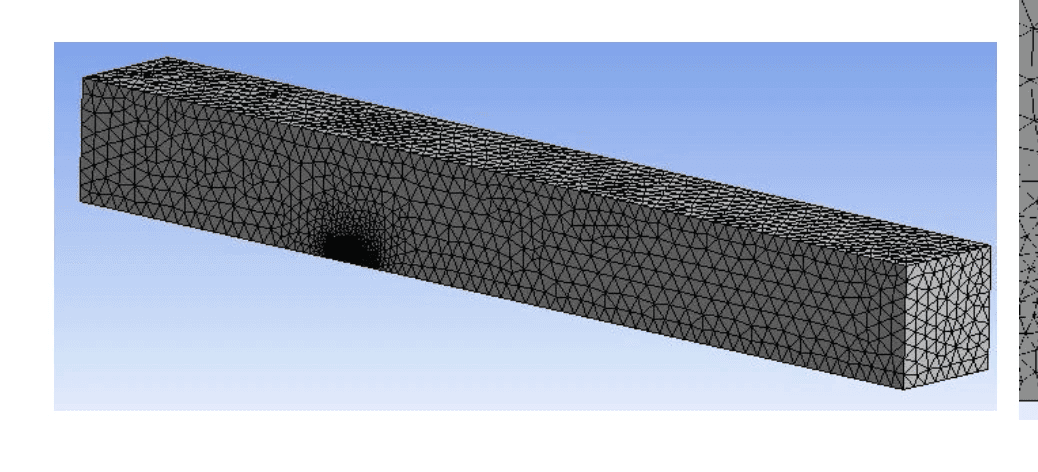

Generated high-quality meshes with inflation layers in ANSYS Meshing.
Configured steady-state CFD simulations in Fluent

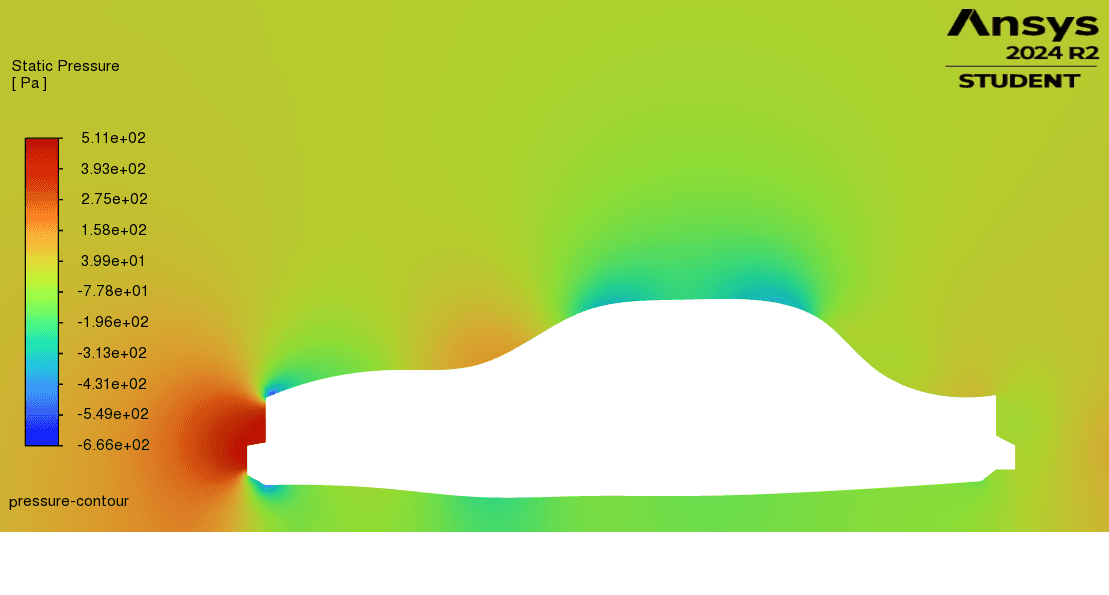

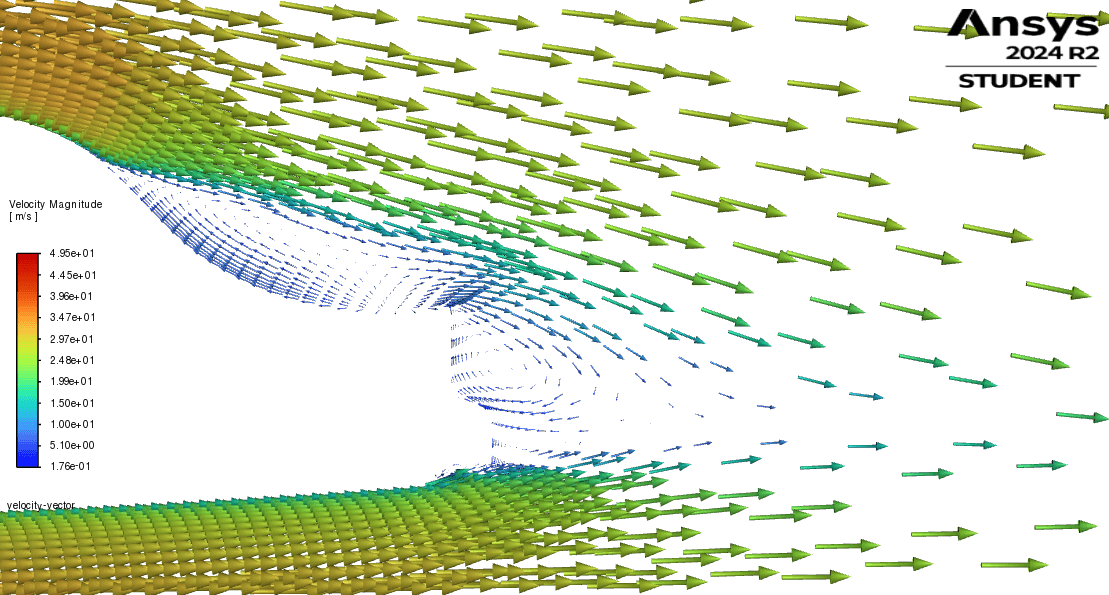

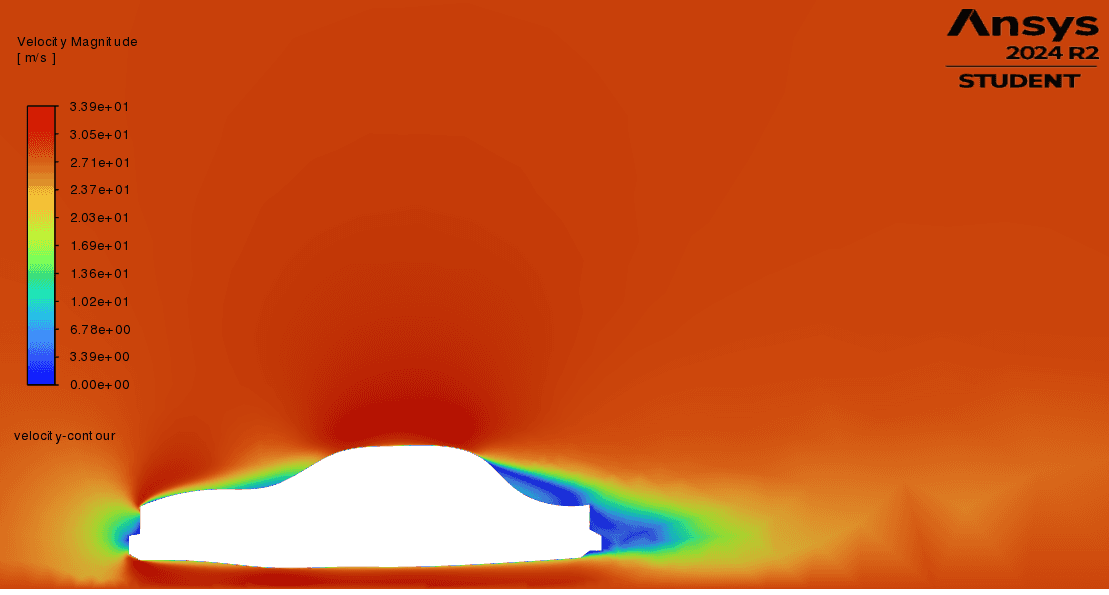

Simulated airflow and analyzed velocity, pressure around the sedan body.
Compared the aerodynamic performance with and without the spoiler.
Created 3D models of the sedan with and without a spoiler using ANSYS DesignModeler.
Generated high-quality meshes with inflation layers in ANSYS Meshing.
Configured steady-state CFD simulations in Fluent
Simulated airflow and analyzed velocity, pressure around the sedan body.
Compared the aerodynamic performance with and without the spoiler.
Results
Results

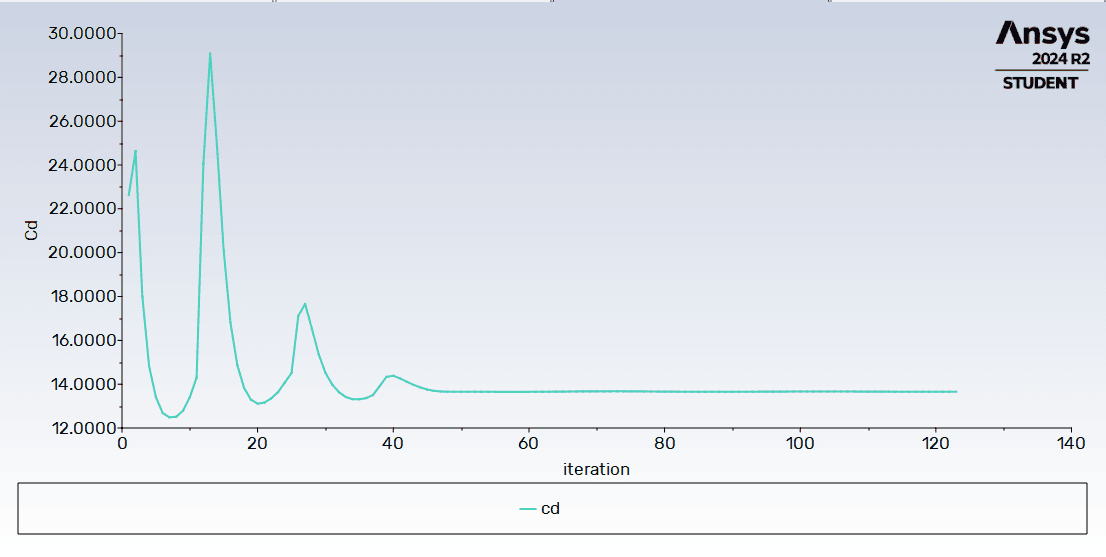

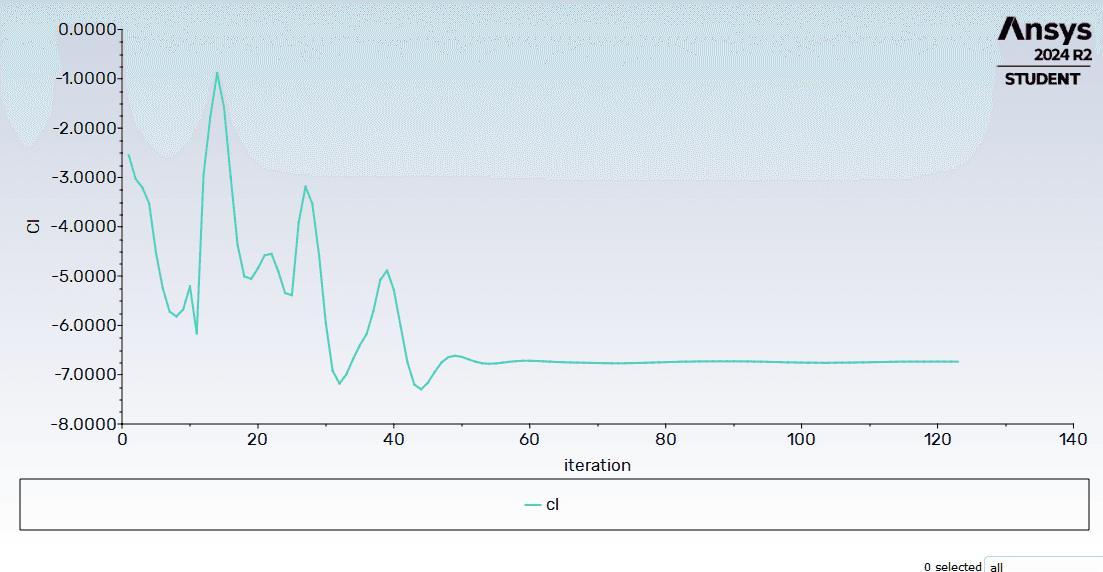

Observed a significant increase in drag and a shift from negative to positive lift when the spoiler was added, indicating reduced stability but increased airflow resistance.
Observed a significant increase in drag and a shift from negative to positive lift when the spoiler was added, indicating reduced stability but increased airflow resistance.
